Click-on Cladding Tech Info

collapse section
expand section
Typical wall setup

Click-on Cladding typical wall setup

Standard Profiles
Click-on Cladding is available in the following sizes in Flat and Flute profiles.
Flat

Flute

Double Flute

3D Profiles
Click-on Cladding can be incorporated with the following 3D sizes using a direct-fix clip connection.

Achieving 3D Looks

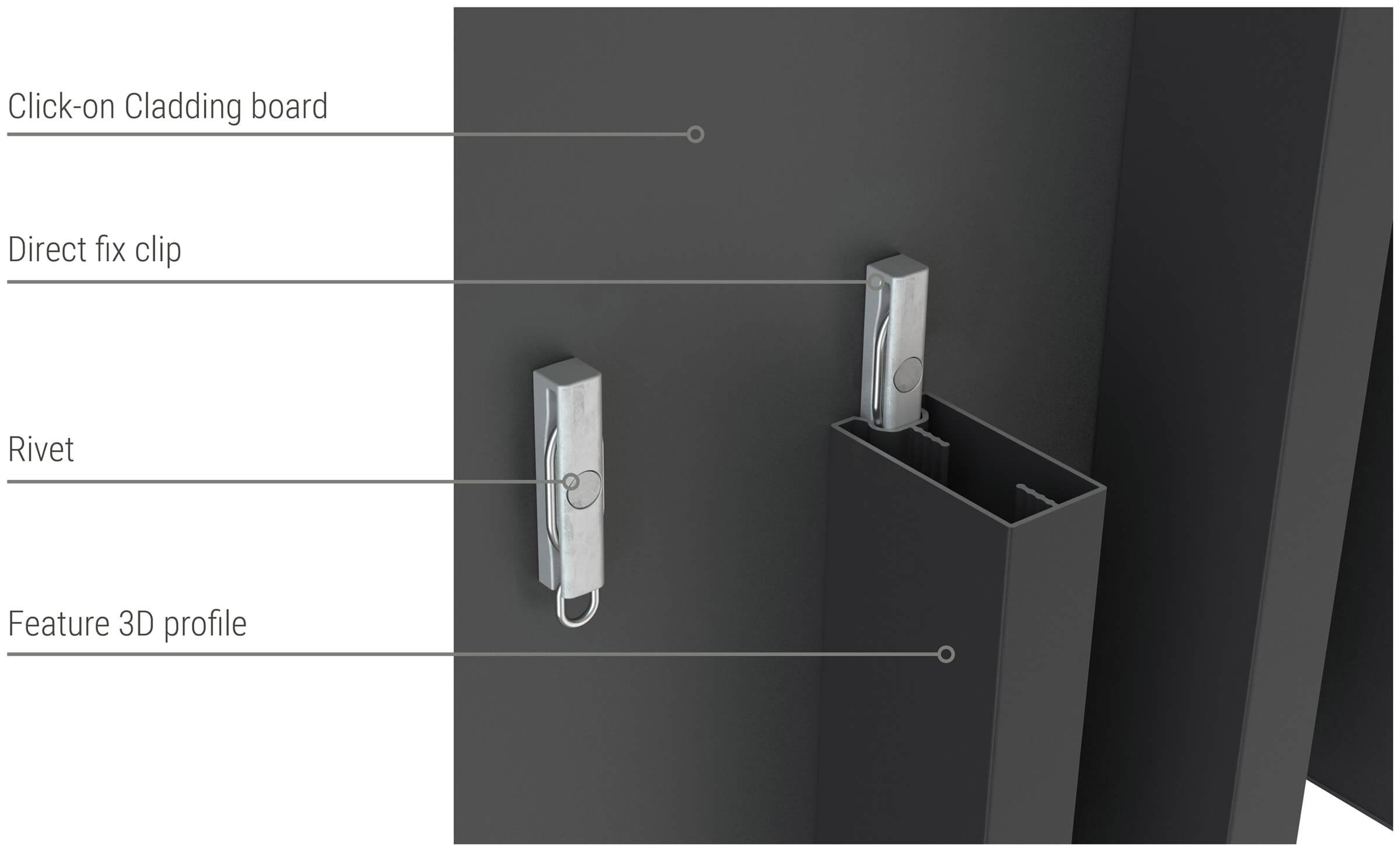

To create 3D looks, our Click-on Cladding system can be used in conjunction with our aluminium Click-on Battens. The 3D Profiles are fixed using clips which aren’t fixed to mounting tracks, known as ‘direct fix clips’.

Boards and battens can be used in any combination to create the required texture and can use different finishes to create contrast and variation.

3D looks Click-on Cladding

Finishes

Colours have been reproduced as accurately as possible, we recommend that you request product samples before making your final selection.

Please note: Lead times for product samples vary from 1-3 weeks for finishes depending on the colour selected. Colour swatches are available for urgent requests. Please contact us for more information.

Selection of Powder coat colours shown below only. We can offer the full range of Dulux colours available here.

Interior only Interior / exterior
Sculptform - Dark Gold Anodised

Interior / exterior
Sculptform Antique Gold Antique Gold
Interior / exterior
Sculptform - Anodised Black Black
Interior / exterior
Sculptform Dark Bronze Dark Bronze
Interior / exterior
Sculptform Bronze Medium Medium Bronze
Interior / exterior
Sculptform - Bronze Medium Standard Bronze
Interior / exterior
Sculptform Pale Bronze Pale Bronze
Interior / exterior
Sculptform Light Bronze Light Bronze
Interior / exterior
Sculptform - Dark Gold Dark Gold
Interior / exterior
Sculptform Gold Light Light Gold
Interior / exterior
Sculptform Gold Medium Medium Gold
Interior / exterior
Sculptform Anodised Silver Silver
Sculptform Timber Veneer walnut Real Timber Veneer

Interior Only
Sculptform Timber Veneer walnut Walnut
Interior Only
Sculptform White Oak Raw White Oak
Interior Only
Sculptform Blackbutt Raw Blackbutt
Interior Only
Sculptform Spotted Gum Raw Spotted Gum
Sculptform Spotted Gum TLW Wood Finish Aluminium

Interior / exterior
Sculptform Wood Finish Chocolate Oak Chocolate Oak
Interior / exterior
Sculptform Wood Finish Greywash Oak Greywash Oak
Interior / exterior
Sculptform Wood Finish Smoked Oak Smoked Oak
Interior / exterior
Sculptform Wood Finish Spotted Gum Spotted Gum
Interior / exterior
Sculptform Wood Finish Walnut Walnut
Interior / exterior
Sculptform Wood Finish White Oak White Oak
Interior / exterior
Sculptform Wood Finish Whitewash Blackbutt Whitewash Blackbutt
Interior / exterior
Sculptform Wood Finish Whitewash Oak Whitewash Oak
Interior / exterior
Sculptform Wood Finish Blackbutt Blackbutt
Interior / exterior
Sculptform Wood Finish Rivergum Rivergum
architectural cladding Powdercoat - Duralloy

Interior / exterior
tongue and groove cladding Apo Grey
Interior / exterior
vertical timber screen Barley
Interior / exterior
architectural cladding Barrister White
Interior / exterior
Shou Sugi Ban Basalt
Interior / exterior
vertical timber screen Berry Grey
Interior / exterior
Shou Sugi Ban Black
Interior / exterior
architectural cladding Blue Ridge
Interior / exterior
architectural cladding Bright White
Interior / exterior
architectural cladding Canola Cream
Interior / exterior
tongue and groove cladding Charcoal
Interior / exterior
Shou Sugi Ban Classic Cream
Interior / exterior
timber ceiling cladding Classic Hawthorn Green
Interior / exterior
architectural cladding Cottage Green
Interior / exterior
soffit ceiling Cove
Interior / exterior
vertical timber screen Deep Brunswick Green
Interior / exterior
soffit ceiling Deep Ocean
Interior / exterior
tongue and groove cladding Doeskin
Interior / exterior
vertical timber screen Dune
Interior / exterior
Shou Sugi Ban Evening Haze
Interior Only
tongue and groove cladding Grey Nurse
Interior / exterior
Shou Sugi Ban Gully
Interior / exterior
tongue and groove cladding Hammersly Brown
Interior / exterior
vertical timber screen Iron Stone
Interior / exterior
tongue and groove cladding Jasper
Interior / exterior
vertical timber screen Light Grey
Interior / exterior
tongue and groove cladding Magnolia
Interior / exterior
Shou Sugi Ban Mangrove
Interior / exterior
vertical timber screen Manor Red
Interior / exterior
architectural cladding Mid Bronze
Interior / exterior
tongue and groove cladding Monument
Interior / exterior
timber ceiling cladding Notre Dame
Interior / exterior
timber ceiling cladding Off White
Interior / exterior
timber ceiling cladding Olde Pewter
Interior / exterior
timber ceiling cladding Oyster
Interior Only
Pale Eucalypt
Interior / exterior
vertical timber screen Paperbark
Interior / exterior
timber ceiling cladding Rivergum Beige
Interior / exterior
architectural cladding Shale Grey
Interior / exterior
architectural cladding Shoji White
Interior / exterior
tongue and groove cladding Stone Beige
Interior / exterior
tongue and groove cladding Stone Grey
Interior / exterior
Shou Sugi Ban Surfmist
Interior / exterior
Shou Sugi Ban Terrain
Interior / exterior
Shou Sugi Ban Wallaby
Interior / exterior
timber ceiling cladding Weathered Copper
Interior / exterior
timber ceiling cladding Wedgewood
Interior / exterior
timber ceiling cladding White Birch
Interior / exterior
vertical timber screen Windspray
Interior / exterior
vertical timber screen Woodland Grey
facade architecture Powdercoat - Precious

Interior / exterior
soffit ceiling Bronze Pearl
Interior / exterior
timber feature wall Champagne Kinetic Pearl
Interior / exterior
facade architecture Charcoal Metallic Pearl
Interior / exterior
soffit ceiling Citi Pearl
Interior / exterior
facade architecture Copper Kinetic Pearl
Interior / exterior
timber feature wall Essential Silver Pearl
Interior / exterior
facade architecture Gunmetal Kinetic Pearl
Interior / exterior
facade architecture Metropolis Bronze Pearl
Interior / exterior
facade architecture Metropolis Silver Glow Pearl
Interior Only
facade architecture Metropolis Storm Pearl
Interior / exterior
facade architecture Mother of Pearl
Interior / exterior
soffit ceiling Natural Pearl
Interior / exterior
facade architecture Nickel Pearl
Interior / exterior
facade architecture Onyx Pearl
Interior / exterior
facade architecture Pewter Pearl
Interior / exterior
facade architecture Platypus Kinetic Pearl
Interior / exterior
facade architecture Sharp Silver Kinetic Pearl
Interior / exterior
timber feature wall Silver Kinetic Pearl
Interior / exterior
timber feature wall Silver Pearl
Interior / exterior
facade architecture St Elmos Fire Kinetic Pearl
Interior / exterior
facade architecture Steel Pearl
Interior / exterior
timber feature wall Typhoon Pearl
timber battens Powdercoat - Alphatec

Interior Only
interior wall cladding Blaze Blue
Interior Only
timber battens Dark Violet
Interior Only
interior wall cladding Flame Red
Interior Only
interior wall cladding French Blue
Interior Only
interior wall cladding Lemon Yellow
Interior Only
timber battens Mistletoe
Interior Only
timber battens Orange X15
Interior Only
timber battens Pommel Blue
Interior Only
timber battens Signal Red
Interior Only
interior wall cladding Space Blue
Interior Only
interior wall cladding Yellow Gold
timber feature wall Powdercoat - Duratec

Interior / exterior
timber wall cladding Eternity Bronze Pearl
Interior / exterior
interior wall cladding Appliance White
Interior / exterior
interior wall cladding Arctic White
Interior / exterior
Wood Cladding Chain Pearl
Interior / exterior
interior wall cladding Chalk USA
Interior Only
ceiling styles and designs Champagne Kinetic
Interior / exterior
interior wall cladding Citi Silver Pearl
Interior / exterior
interior wall cladding Copper Metallic Kinetic
Interior / exterior
interior wall cladding Dark Grey
Interior / exterior
ceiling styles and designs Desert
Interior / exterior
timber wall cladding Eternity Charcoal Pearl
Interior / exterior
timber wall cladding Eternity Nickel Pearl
Interior / exterior
Wood Cladding Eternity Pewter Pearl
Interior / exterior
interior wall cladding Evergreen
Interior / exterior
Intensity Storm
Interior / exterior
interior wall cladding Leaf
Interior / exterior
ceiling styles and designs Linen Pearl
Interior / exterior
timber wall cladding Lunar Eclipse
Interior / exterior
Wood Cladding Lunar Grey
Interior / exterior
interior wall cladding Matt Canvas Cloth
Interior / exterior
interior wall cladding Monument Zeus
Interior / exterior
ceiling styles and designs Moonlight
Interior / exterior
ceiling styles and designs Reef
Interior / exterior
interior wall cladding Silver Grey
Interior / exterior
interior wall cladding Star Pearl
Interior / exterior
ceiling styles and designs Summer
Interior / exterior
ceiling styles and designs Sunshine
Interior / exterior
interior wall cladding Talc
Interior / exterior
interior wall cladding Timberland
Interior Only
timber feature wall Titanium Pearl
Interior / exterior
Wood Cladding Zeus Black
Interior / exterior
timber wall cladding Zeus Charcoal
Interior / exterior
Wood Cladding Zeus Grey
Interior / exterior
ceiling styles and designs Zeus White
Curved walls and ceilings

The Click-on Cladding system can be used to create both convex and concave curves using our specially designed mounting track. The track is provided to site flexible and fitted to a curved form on-site.

The minimum and maximum radius achievable is dictated by the profile of the board, with smaller boards being able to fit a tighter radius. See the table below for more information or contact us to discuss custom sequences and how they can fit your project.



Profile Convex Radius Concave Radius
75x12mm Flat 300mm 950mm
150x12mm Flat 600mm 800mm
300x12mm Flat 1200mm 1500mm
75x15mm Flute 300mm 950mm
150x15mm Flute 600mm 800mm
60x15mm Double Flute 1200mm 1500mm
Mounting Track Types

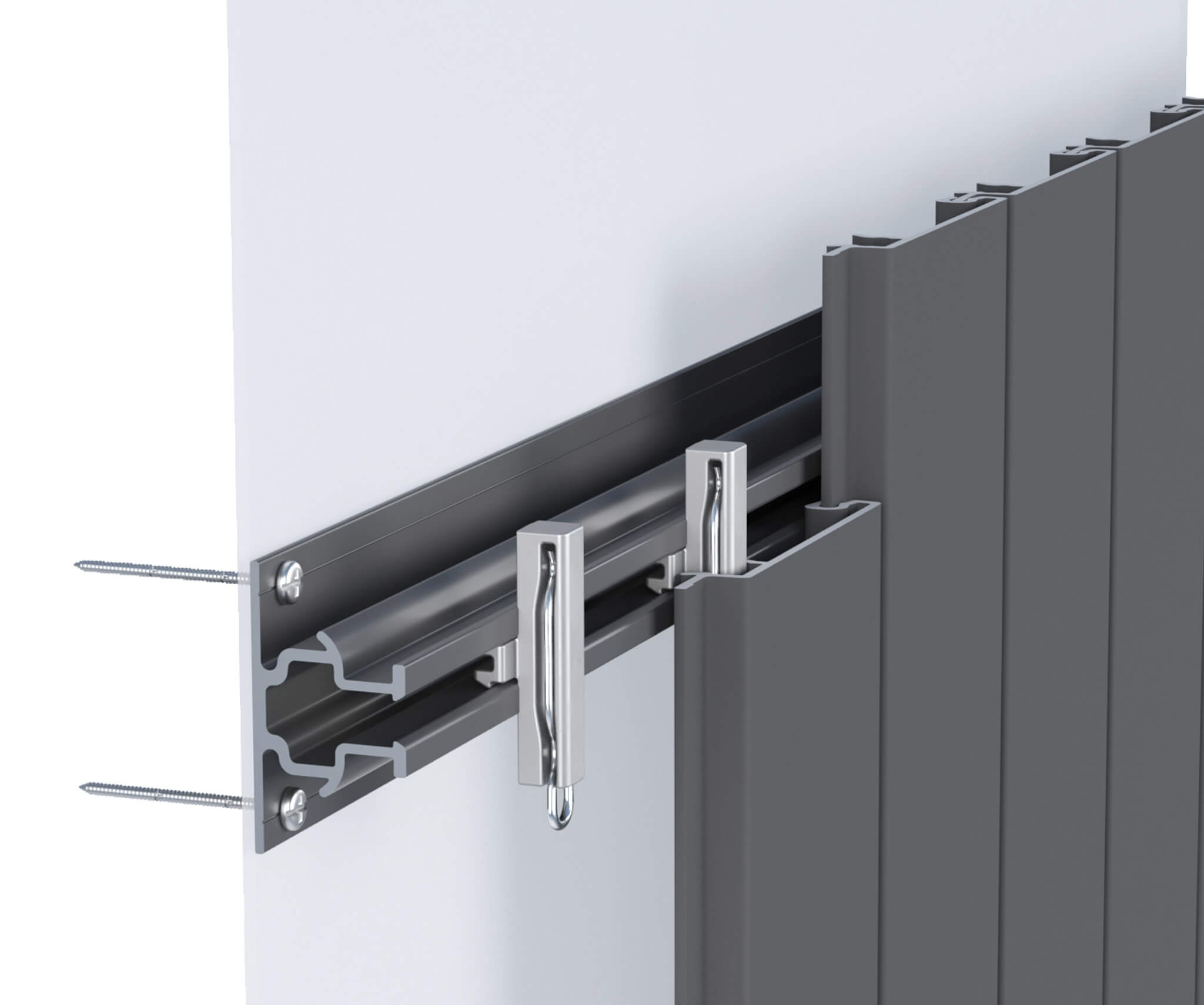

Sculptform Click-on Cladding standard mounting track

Standard Track

45mm wide x 25mm deep

Suitable for interior and exterior applications.

Note: Screw fixing to suit substrate not supplied by Sculptform. Recommended screw fixing centres: 600mm Interior / 450mm Exterior

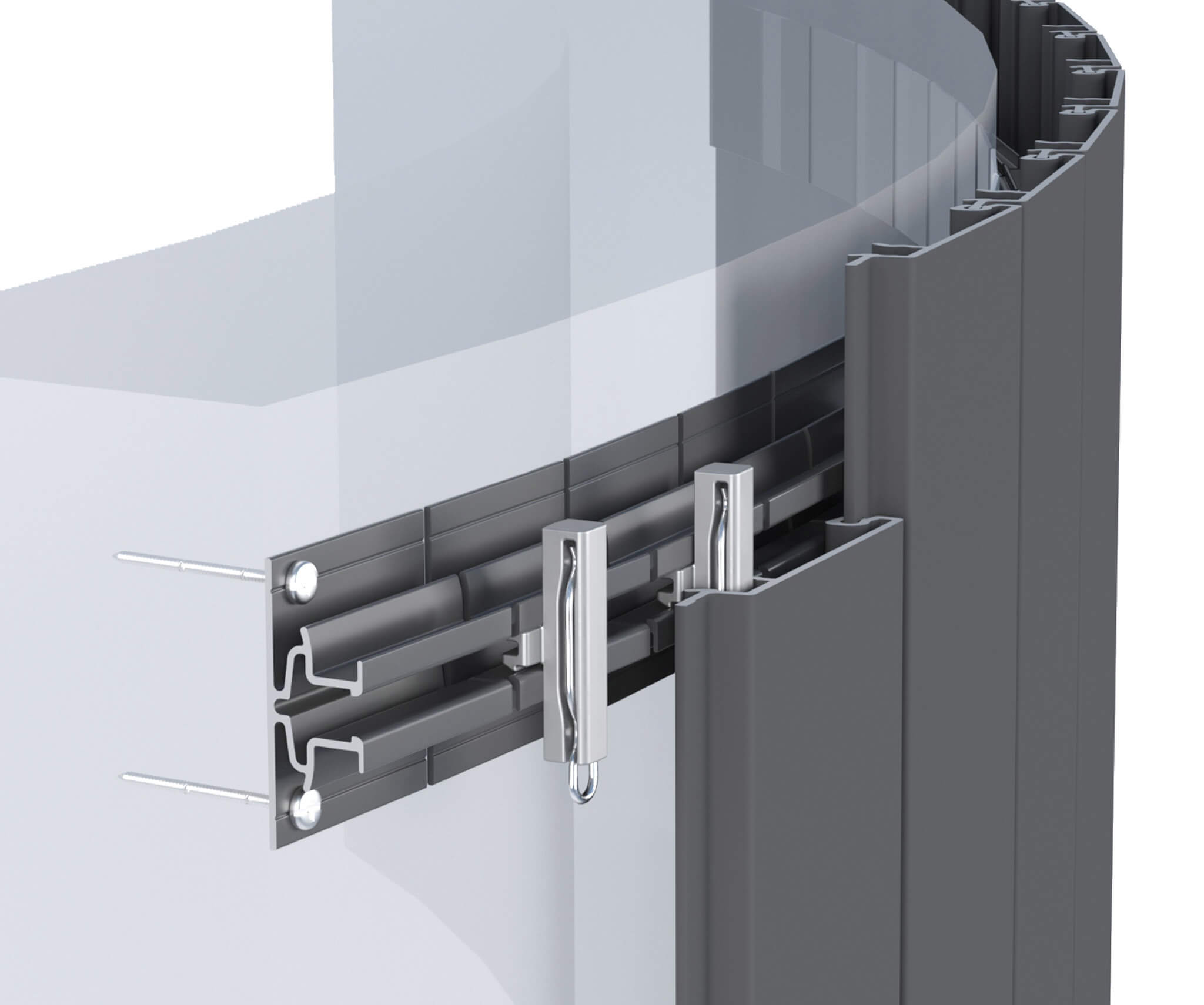

Sculptform Click-on Cladding curved mounting track

Curving Track

45mm wide x 17mm deep

Supplied to site flexible and used to curve around the existing form.

Note: Screw fixing to suit substrate not supplied by Sculptform. Recommended screw fixing centres: 300mm Interior / 200mm Exterior

Fire Compliance
Sculptform Click-on cladding is constructed of 100% Australian aluminium which has been thoroughly tested for fire compliance. Learn more and download your required certification below.
Group Rating

Sculptform Aluminium achieves a Group 1 rating as per Section 9 (n) of AS 5637.1-2015, the determination of the group number is based on the AS/NZS 3837-1998 test, and is deemed valid in the cone calorimeter for the assignment of National Construction Code (NCC) group number.

Download Certificates

Real Timber Veneer – AS/NZS 3837     Wood Finish Aluminium – AS/NZS 3837

Powder coat – AS/NZS 3837     Anodised – AS/NZS 3837



Combustibility

Sculptform’s Aluminium is deemed non-combustible according to the test criteria specified in Clause 3.4 of AS 1530.1-1994.

According to the NCC, for a product to be deemed non-combustible the Spread of Flame Index needs to be 0.

Download Certificates

aluminium – AS 1530.1     Powder coat – AS/NZS 1530.3     Wood Finish Aluminium – AS/NZS 1530.3

Construction Details
Sculptform Click-on Cladding trim details
Trim Detailing
The Click-on Cladding system uses a set of fully detailed trims for your wall or ceiling application. See individual drawings below or download the entire set in DWG and PDF format at the bottom of the list.
A. End Detail

Sculptform Click-on Cladding end detail

B. Top Cap Detail

Sculptform Click-on Cladding top cap detail

C. Base Detail

Sculptform Click-on Cladding base detail

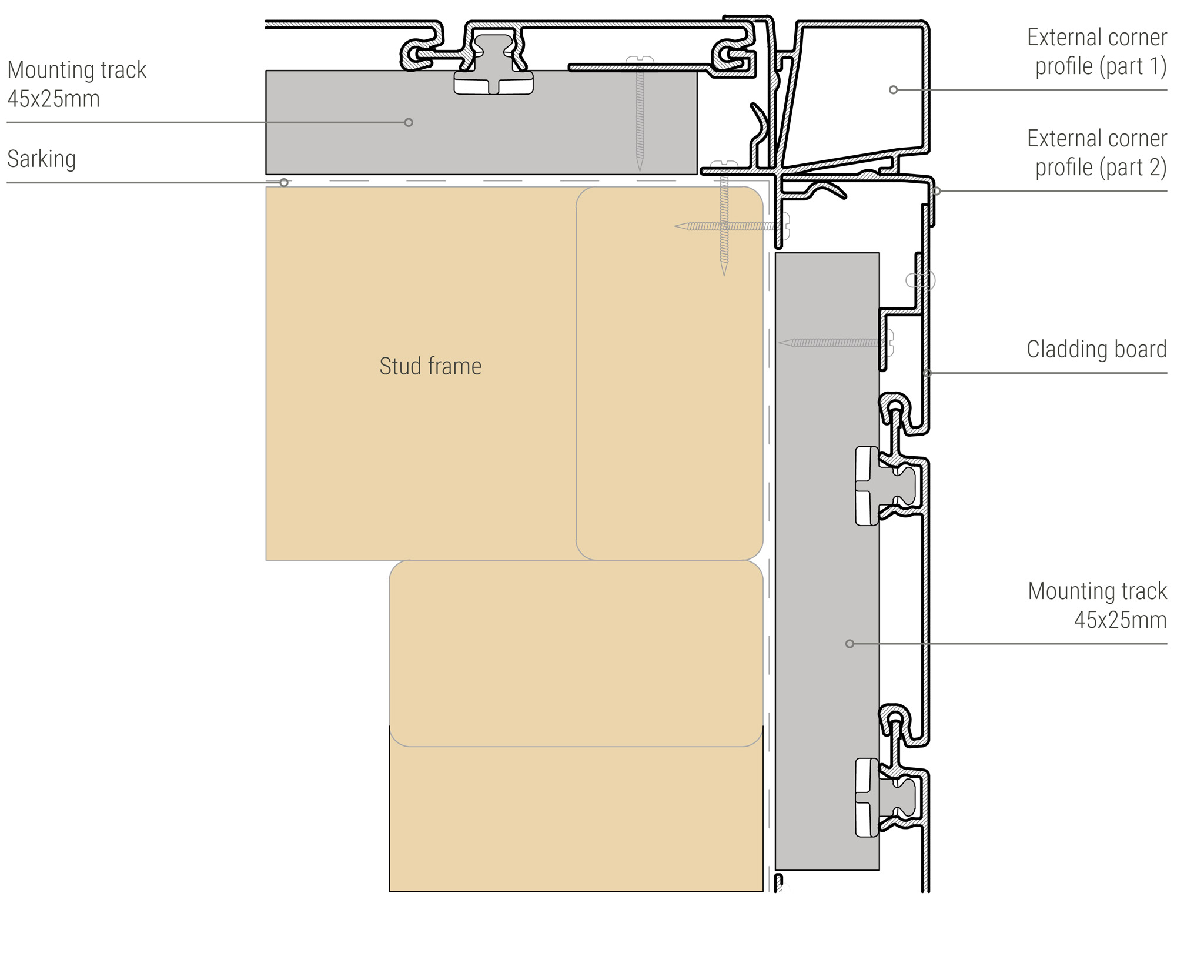

D. External Corner Detail

Sculptform Click-on Cladding external corner

E. Internal Corner Detail

Sculptform Click-on Cladding internal corner

F. Window Header Detail

Sculptform Click-on Cladding window header detail

G. Window Side Detail

Sculptform Click-on Cladding window side detail

Board weights and wall thicknesses
Profile Wall Thickness Weight per Lineal Metre Weight per Square Metre
75x12mm Flat 1.6mm 0.58kg/lm 7.73kg/m²
150x12mm Flat 1.8mm 0.98kg/lm 6.53kg/m²
300x12mm Flat 3mm 2.62kg/lm 8.73kg/m²
75x15mm Flute 1.6mm 0.61kg/lm 8.13kg/m²
150x15mm Flute 1.8mm 1.01kg/lm 6.73kg/m²
60x15mm Double Flute 1.6mm 0.54kg/lm 9kg/m²
Orientation

Can be used horizontally or vertical.

Length Options

Click-on Cladding boards are available in lengths of up to 6m.

Maintenance and cleaning

Aluminium is a relatively low maintenance solution for any application. Maintenance largely depends on the degree of exposure, location of the project, and the coating used. Generally, no cleaning is required; however, a typical schedule could include a visual inspection every 12 months to ensure there are no adverse environmental effects.

Surface dirt/dust, spider webs, bird droppings, rain spots and other debris, while not harmful can be unattractive and reduce the visual impact. A soft bristle broom or brush can be used to wipe the facade. Water can be used to aid the process but do not use harsh chemical cleaners as in some cases, coated layers can be removed.

Example specification

Use the following table as a guide when creating your specification for Sculptform Click-on Cladding. The details on this page will guide you through the range of finishes and profile sizes we have available.

Product Sculptform Click-on Cladding
Material Aluminium
Profile/s 75x12mm Flat, 150x12mm Flat repeating
Finish Wood Finish Aluminium – Spotted Gum
Track Type Standard
Data Sheet Downloads

The following data sheets contain specific information on Click-On Cladding and its range of finishes, downloadable in PDF format.

Click-on Cladding Data Sheet

Wood Finish Aluminium Data Sheet

Thermal Expansion

Our cladding boards are 100% aluminium, with the system designed to accommodate thermal expansion. This expansion occurs over the length of the board, with the following data being calculated as a guide. These examples of thermal expansion are based on cladding boards of 4m and 6m being installed in winter at 0°C and then heated to 50°C in summer.

Board Length Expansion (in board length)
4m 4.6mm
6m 6.9mm
Samples

Interested in a sample? Samples of Click-on Cladding can be requested below.

Request a Sample

DWG Files

Download our complete package of DWG files for our Click-on Cladding range below.

Click-on Cladding DWG files
